School Bus 3050WB 9+D
SALIENT FEATURES
- Mercedes derived, Highly Powerful and fuel efficient FM 2.6 SNG Power train

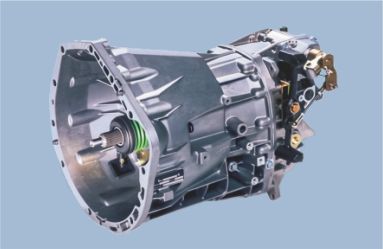

- Synchromesh G-32 Gear Box for Effortless Gear Shifting

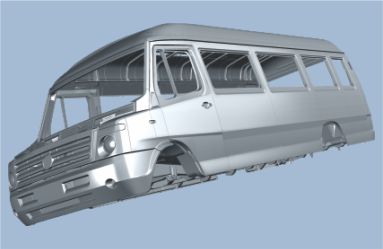

- Monocoque body ensures total safety and car like ride quality

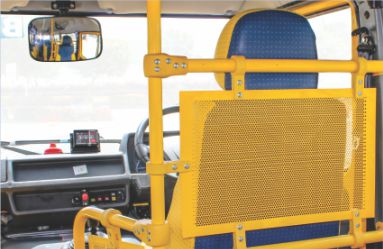

- Large Internal Rear View Mirror and Driver partition

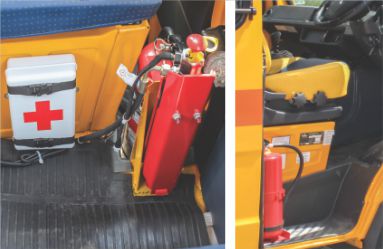

- First Aid Kit & Fire Extinguishers in case of an emergency

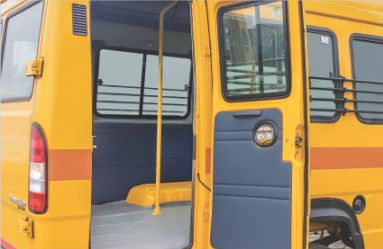

- Emergency Exit Door for Easy Exit
- 15+D

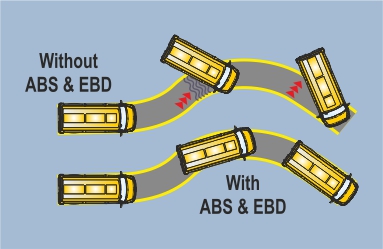

- ABS and EBD
| Engine | |
| Engine | FM2.6CR ED |
| Bore X Stroke (mm) | 90.9X100 |
| Emission | BS-VI Stage 2 |
| Type | 4 Cyl. Common Rail, DI TCIC |
| Displacement cc | 2596cc |
| Max Output | 85kW (114 hp) @ 2950 rpm |
| Max Torque | 350 Nm @ 1400 - 2200 rpm |
| TRANSMISSION | |
| Type | Manual, Synchromesh |
| Make & Model | G32-5 |
| No. of Gears | 5Front +1Reverse |
| BODY | |
| Type | Monocoque Construction |
| SUSPENSION | |
| Front And Rear | Spring Semi elliptical |
| Anti roll bar | Front - Yes Rear - Optional |
| Shock absorbers | Hydraulic telescopic double acting at front and rear |
| BRAKES | |
| Service Brakes | Hydraulic, Dual circuit, vacuum assisted ABS with EBD |
| Auto Slack Adjuster | Yes |
| Front | Disc |
| Rear | Drum |
| Parking | Mechanical acting on rear wheels |
| CAPACITY | |
| Fuel Tank | 70 Litres |
| DIMENSIONS (mm) | |
| Wheel Base | 3050 |
| Overall Length | 5135 |
| Overall Width | 1900 |
| Overall Height | 2550 |
| Ground Clearance | 200 |
| WEIGHT (kg) | |
| Maximum GVW | 3675 |

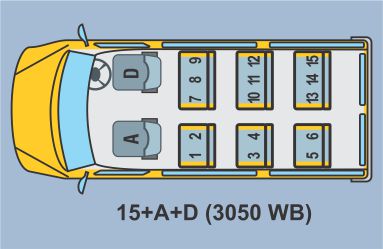

| SEATING CAPACITY | |
| Seating Capacity | 12+A+D (3X2) 15+A+D (3X2) |
