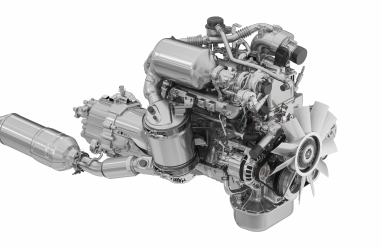

| ENGINE |
| Engine |
FM2.6CR ED |
| Emission |
BS-VI Stage 2 |
| Type |
4 Cyl. Common Rail, DI TCIC |
| Bore x Stroke |
90.9 x 100 |
| Displacement |
2596 cc |
| Max Output |
85kW (114 hp) @ 2950 rpm |
| Max Torque |
350 Nm @ 1400 - 2200 rpm |
| CLUTCH |
| clutch |
Dry friction, single plate & hydraulically actuated |
| GEAR BOX |
| Model |
G32-5 |
| Type |
Synchromesh |
| No. of Gears |
5Front +1Reverse |
| STEERING |
| Type |
Power Steering |

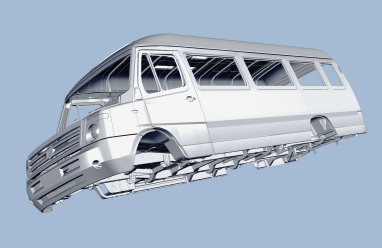

| BODY |
| Type |
Monocoque construction |
| SUSPENSION |
| Front & Rear |
Spring Semi elliptical |
| Anti roll bar |
Front-Yes, Rear (Optional) |
| Shock absorbers |
Hydraulic telescopic double acting at front & rear |
| BRAKES |
| Type |
Hydraulic, Dual circuit, vacuum assisted |
| Auto Slack Adjuster |
Yes |

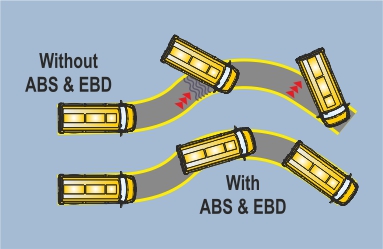

| ABS with EBD |
Optional |
| Front |
Disc. |
| Rear |
Drum |
| Parking Brake |
Mechanical acting on rear wheels |
| DIMENSIONS (mm) |
| Wheel Base |
3050 |
| Overall Width |
1900 |
| Overall Length |
5135 |
| Overall Height |
2550 |
| Ground Clearance |
200 |
| CARGO BOX |
| Cargo Box L x W x H (mm) |
2820 X 1680 X 1830 |
| Cargo Area (m 2) |
4.7 |
| Cargo Vol. (m3 ) |
8.7 |
| WHEELS & TYRES |
| Size |
215/75 R15 |
| Tyre Type |
Radial tubeless / with tube (4+1) |
| WEIGHT (kg) |
| Maximum GVW |
3960 |
| Payload |
1464 |
| CAPACITY |
| Fuel Tank |
70 Litres |

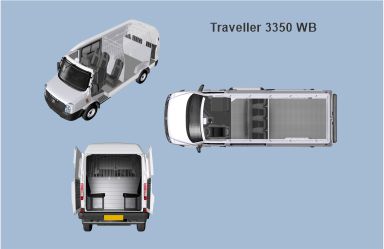

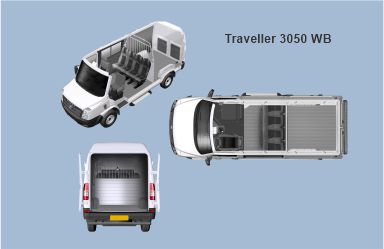

| SEATING CAPACITY |
| Seating Capacity |
6+D |
