Ambulance C Type 9+P+D

SALIENT FEATURES

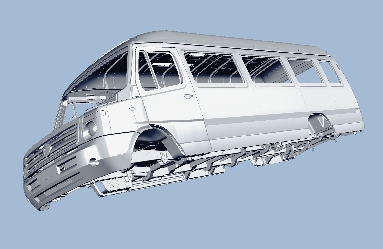

  • Monocoque body ensures total safety and car like ride quality

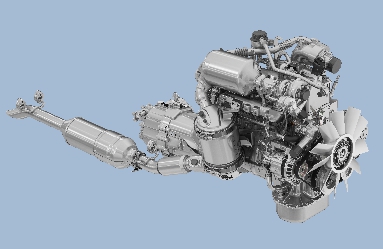

  • Mercedes derived, Highly Powerful and fuel efficient FM 2.6 CR Power train

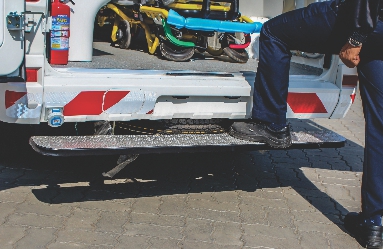

  • Full Length Footstep (1600mm × 190mm) and 405mm Height in T1 and 426 mm Height in T2 From Ground For Ease of Entry And Exit

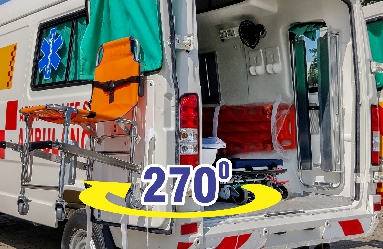

  • 270 Degree Door Opening With Self Locking

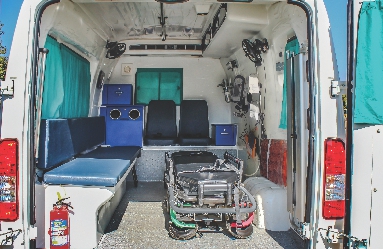

  • Separate Doctor Seat & Squad Bench for Paramedic Staff or Realtives

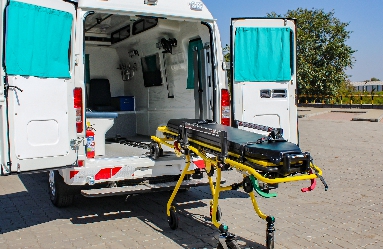

  • Floor Height 690 mm for Loading Foldable Stretcher Cum Trolley (AIS - 125 Certified)

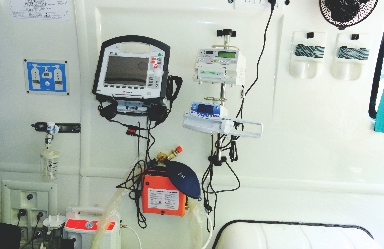

  • Side wall reinforced to mount Defibrillator,Ventilator, Suction Pump etc.

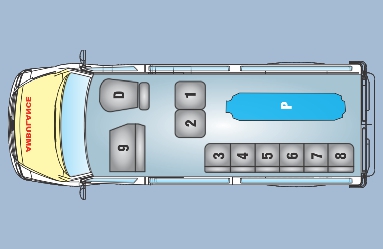

  • 9+P+D

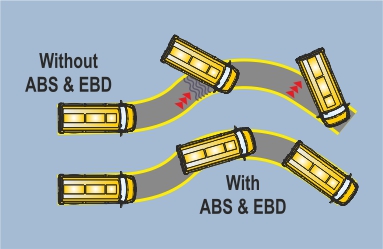

  • ABS with EBD

ENGINE
Model FM 2.6 CR ED
Emission BS-VI Stage 2
Type 4 Cylinder Common Rail , DI TCIC
Displacement 2596 cc
Max. Output 85kW (114hp) @ 2950 rpm
Max Torque 350 Nm @ 1400 - 2200 rpm
TRANSMISSION
Type G32-5, Synchromesh
No. of Gears 5 Forward & 1 Reverse
AXLES
Front Dead Rigid, I-Beam & Reverse Elliot Type
Rear Live Rigid
SUSPENSION
Front Semi Elliptical Leaf Springs with Hydraulic Shock Absorber and Anti Roll Bar
Rear Semi Elliptical Leaf Springs with Hydraulic Shock Absorbers
STEERING
Type Power Steering
Brakes Hydraulic, dual circuit, vacuum assisted ABS with EBD
BRAKES
Front Disc
Rear Drum
Parking Brake Mechanical on rear wheels
WHEELS & TYRES
Tyre Type Radial with Tube / Tubeless (4+1)
Tyre Size 215/75 R15
DIMENSION (mm)
Wheel Base 3350
Overall Length 5615
Overall Width 1900
Overall Height 2550
Ground Clearance 200
WEIGHT (kg)
Maximum GVW 4150
TURNING RADIUS (m)
Radius 6.5
FUEL TANK
Capacity 70 Litres
SEATING CAPACITY
Type-C 9+P+D
