Ambulance T2 Multistretcher 5 + 4 Patient

SALIENT FEATURES

  • 1 tonne lighter pressed steel body with Monocoque construction.
    Outstanding structural strength and unmatched durability.
    Robotic Automated welding for best-in-class build quality

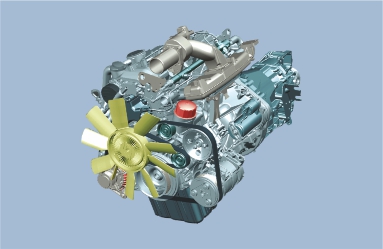

  • Powered by the most powerful engine derived from Mercedes designs and adapted to Indian conditions
    These ensures best in class fuel mileage, Driveability and Reliability.

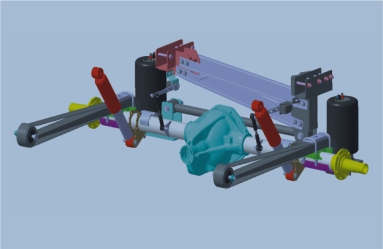

  • India's first product to have option of Rear Air Suspension in its class.
    Ensures jerk free rides to patients and medical staff
    Facilitates easy inspection and in transit treatments to patients
  • Dual Mass fly wheel" for Superior Drive and Special clutch lining-designed for frequent start-stop operation.
    G-32, 5 Speed Mercedes Licensed Synchromesh Gear Box, which offers low friction, long life and smooth transmission.

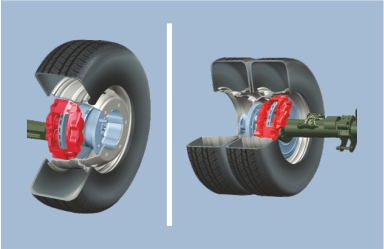

  • Offers the highest quality of safety with 4 piston, Twin Pot Calliper ventilated disc brakes on all the wheels - ensuring top class braking.
    Dual Wheel Rear Axle for maximum stability.

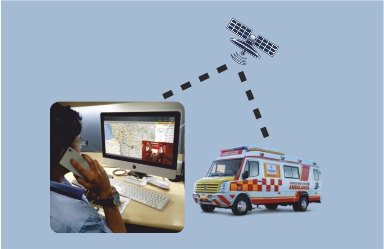

  • Vehicle tracking & surveillance system: India's 1st product with live tracking & live footage streaming for enhanced safety.

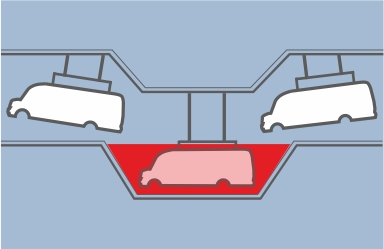

  • The only vehicle in its category with C.E.D (Cathodic Electro- deposition) painting. The latest (Sixth generation) dip painting plant ensures highest level of rust protection. The top coat paint finish is of car standard.

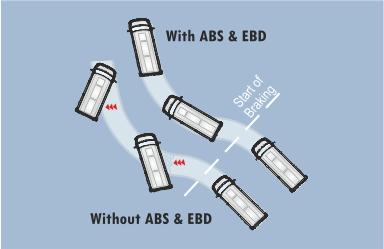

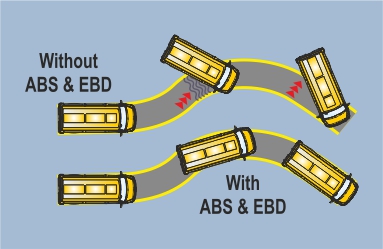

  • India's first product with Anti- locking Braking System (ABS) with electronic Brake-Force Distribution (EBD) for best-in- class safety. The ABS prevents wheels from locking when braking on a slippery or winding road. The EBD ensures brake force distribution taking into account the load on each of the wheels and helps to shorten the stopping distance.
  • Patient Handling Equipment: -3 Nos Auto Loading Stretcher
    - Scoop Stretcher
    - Spinal Board
    - Vaccum Matress

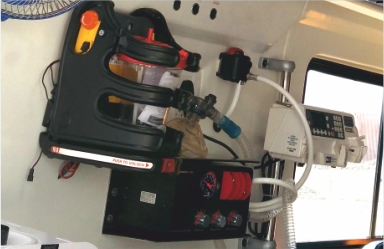

  • Life Management:
    -Cardiac Monitor
    -Defibilirator
    - Suction Pump
  • 3 Way Adjustable Driver Bucket Seat

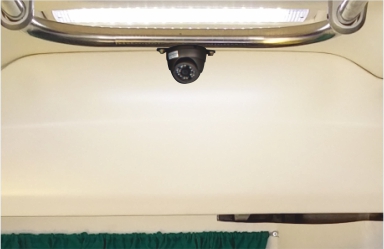

  • External Camera & Internal Camera options for Safety

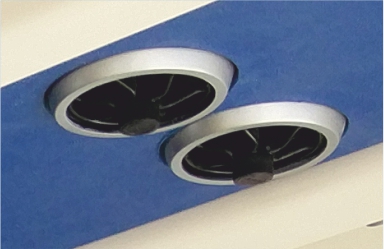

  • Ducted Air Conditioning
  • Ergonomically Designed Utility Space

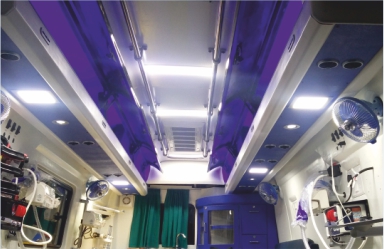

  • ABS Vaccum formed Hygienic Interiors meeting Proposed Ambulance Code

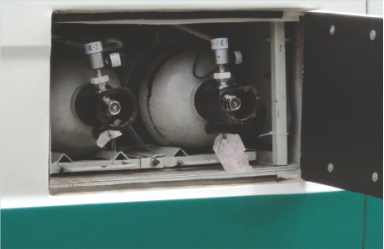

  • Oxygen Delivery System
  • ABS with EBD

ENGINE
Engine FM 3.2 CR
Emission BS-VI Stage 2
Type 5 Cyl. Common Rail
Displacement 3245 cc
Max Output 85kW (115 hp) @ 2800 rpm
Max Torque 320 Nm @ 1400 - 2400 rpm
TRANSMISSION
Type Synchromesh
No. of Gears 5Front, 1Reverse . 5th gear overdrive
BRAKES
Type Hydraulic, Dual circuit, vacuum assisted, ABS with EBD
Front and Rear 4 piston ,ventilated ,disc brakes with indicator
Parking
SUSPENSION Semi Elliptical Leaf Springs With Hydraulic Shock Absorber and Anti Roll Bar
Front Semi elliptical leaf spring with hydraulic shock absorbers and anti roll bar
Rear
Steering Power Steering
AXLES Hydraulic, dual circuit, vacuum assisted ABS with EBD
Front
Rear Live Rigid
Wheel & Tyres 215/75 R15
DIMENSIONS (mm) Mechanical on Rear Wheels
Wheel Base
Overall Length 6770
Overall Width 2225
Overall Height
Ground Clearance 190
Turning Radius 7
WEIGHT (kg) 2225
Kerb Weight 3680
Maximum GVW 5050
CAPACITY
Fuel Tank 70 Litres
SEATING CAPACITY
Seating Capacity 9+D
SEATING CAPACITY
Capacity 3+2P+D
SEATING CAPACITY
Type-D 9+P+D
