Traveller DV 3700WB 1564 Kg

SALIENT FEATURES

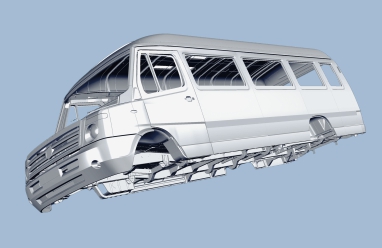

  • Lighter & Stronger pressed steel body with Monocoque construction. Outstanding structural strength and unmatched durability. Robotic Automated welding for best-in-class build quality

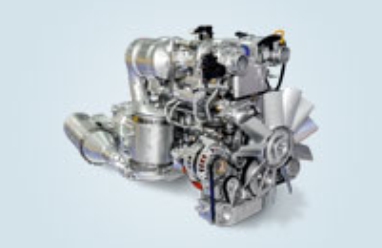

  • Powered by the Mercedes derived FM 2.6 CR ED BS-VI engine. Best in class fuel mileage.

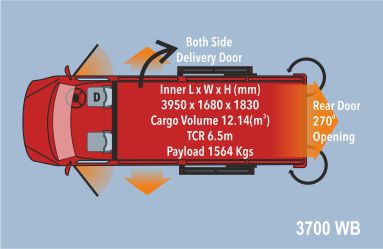

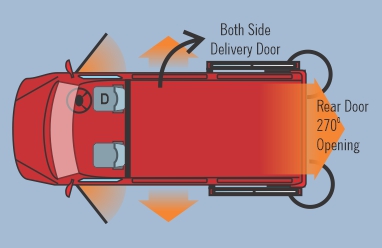

  • India’s first product to have the option of sliding doors on driver and co-driver side in addition to 270o opening rear door. Ensures easy loading and unloading of cargo. Low loading height for T1 750 mm & T2 775 mm
  • Vehicle tracking and surveillance system (optional) India’s 1st product with live tracking and live footage streaming for enhanced safety

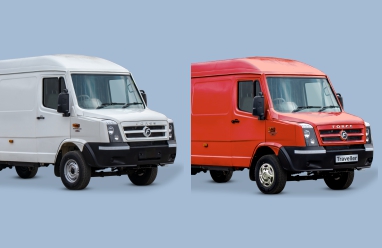

  • Red & White colour options

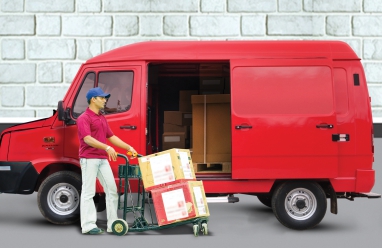

  • Sliding door (option) for kerb side delivery
  • Payload 1564

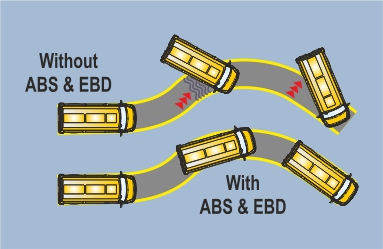

  • ABS and EBD

ENGINE
Engine FM2.6CR ED
Emission BS-VI Stage 2
Type 4 Cyl. Common Rail, DI TCIC
Bore x Stroke 90.9 x 100
Displacement 2596 cc
Max Output 85kW (114 hp) @ 2950 rpm
Max Torque 350 Nm @ 1400 - 2200 rpm
CLUTCH
Clutch Dry friction, single plate & hydraulically actuated
GEAR BOX
Model G32-5
Type Synchromesh
No. of Gears 5Front +1Reverse
STEERING
Type Power Steering
BODY
Type Monocoque construction
SUSPENSION
Front & Rear Spring Semi elliptical
Anti roll bar Front-Yes, Rear (Optional)
Shock absorbers Hydraulic telescopic double acting at front & rear
BRAKES
Type Hydraulic, Dual circuit, vacuum assisted
Auto Slack Adjuster Yes
ABS with EBD Optional
Front Disc.
Rear Drum
Parking Brake Mechanical acting on rear wheels
WHEELS & TYRES
Size 215 / 75 R15
Tyre Type Radial with Tube / tubeless (4 + 1)
DIMENSIONS (mm) 5135
Wheel Base 3700
Overall Width 1900
Overall Length
Overall Height 2550
Ground Clearance 200
CARGO BOX 8.7
Cargo Box LxWxH (mm)
Cargo area (m 2 ) 6.6
Cargo Vol (m 3) 12.1
WEIGHT (kg)
Maximum GVW 4280 Kg
Payload 1564 Kg
CAPACITY
Fuel Tank 70 Litres
SEATING CAPACITY
Seating Capacity 1+D
