| ENGINE |
| Engine |
FM2.6CR ED |
| Emission |
BS-VI Stage 2 |
| Type |
4 Cyl. Common Rail, DI TCIC |
| Bore x Stroke |
90.9 x 100 |
| Displacement |
2596 cc |
| Max Output |
85kW (114 hp) @ 2950 rpm |
| Max Torque |
350 Nm @ 1400 - 2200 rpm |
| CLUTCH |
| Clutch |
Dry friction, single plate & hydraulically actuated |
| GEAR BOX |
| Model |
G32-5 |
| Type |
Synchromesh |
| No. of Gears |
5Front +1Reverse |
| STEERING |
| Type |
Power Steering |
| BODY |
| Type |
Monocoque construction |
| SUSPENSION |
| Front & Rear |
Spring Semi elliptical |
| Anti roll bar |
Front-Yes, Rear (Optional) |
| Shock absorbers |
Hydraulic telescopic double acting at front & rear |
| BRAKES |
| Type |
Hydraulic, Dual circuit, vacuum assisted |
| Auto Slack Adjuster |
Yes |

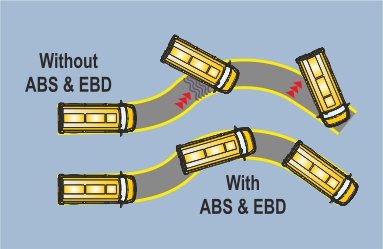

| ABS with EBD |
Optional |
| Front |
Disc |
| Rear |
Disc |
| Parking Brake |
Mechanical acting on Propeller Shaft |
| WHEELS & TYRES |
| Size |
235/65 R 16 |
| Tyre Type |
Radial with Tube/Tubeless / (4+1) |
| DIMENSIONS (mm) |
5135 |
| Wheel Base |
4020 |
| Overall Width |
2385 |
| Overall Length |
| Overall Height |
2670 |
| Ground Clearance |
180 |
| CARGO BOX |
8.7 |
| Cargo Box LXWXH |
| Cargo Area (m2 ) |
9.3 |
| Cargo Vol (m3 ) |
17.4 |
| WEIGHT (kg) |
| Maximum GVW |
5800 |
| Payload |
2379 |
| CAPACITY |
| Fuel Tank |
70 Litres |
| SEATING CAPACITY |
| Capacity |
1+D |
