First Responder 1+D

SALIENT FEATURES

  • A single Rescue cum Firefighting Vehicle can be deployed instead of multiple vehicles without any compromise on efficiency & effectiveness
  • More cost effective because of reduced maintenance, downtime & life – cycle cost . Reduced redundancy due to efficient effective manpower utilization.
  • Versatile deployment possible in cities, villages, coastal areas, hill station, multiple climatic conditions and challenging situations & locations.

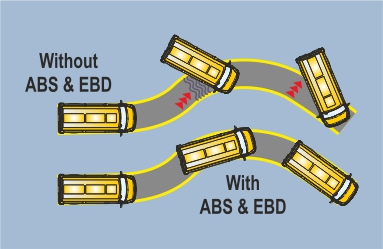

  • With ABS And EBD

ENGINE
Engine FM 2.6 ED
Emission BS-VI Stage 2
Type 4Cyl, Common Rail, DI,TCIC
Displacement 2596 cc
Max Power 85kW (115 hp)@ 2950 rpm
Max Torque 350 Nm @ 1400-2200 rpm
TRANSMISSION
Type Synchromesh
No. of Gears 5Front +1Reverse 5th gear Overdrive
SUSPENSION
Front & Rear Semi elliptical leaf springs with hydraulic shock absorbers anti roll bar
STEERING
Type Power Steering
AXILS
Front Dead Rigid ,I - Beam Reverse Elliot Type
Rear Live Rigid
BRAKES
Type Hydraulic, dual circuit,vacuum assisted
Front 4 piston, ventilated, disc brakes with wear indicator.
Rear Drum Brakes
Parking Mechanical on rear wheels
Wheel & Tyres 5 /76 R15
DIMENSIONS (mm)
Wheel Base 3050 3350
Overall Length 5135 5615
Overall Width 1900 1900
Overall Height 2550 2550
Ground Clearance 200 200
CAPACITY
Fuel Tank 70 Litres
WEIGHT (kg)
Maximum GVW 3675 3965
Turning Radius (m) 6 6.5
SEATING CAPACITY
Seating Capacity 1+ D
