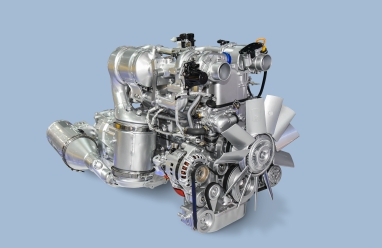

| ENGINE |
| Engine |
FM 2.6 CR ED |
| Emission |
BS-VI Stage 2 |
| Type |
4 Cylinder, Common Rail , DI TCIC |
| Bore x Stroke (mm) |
90.9 x 100 |
| Displacement |
2596 cc |
| Max Output |
85kW (114hp) @ 2950 rpm |
| Max Torque |
350Nm @ 1400-2200 rpm |
| TRANSMISSION |

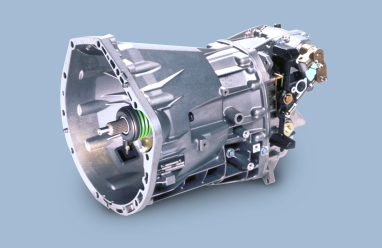

| Type |
Manual, Gear Lock Synchromesh on forward gears |
| Model |
G32-5 |
| No. of Gears |
5 Forward + 1 Reverse |
| BODY |
| Type |

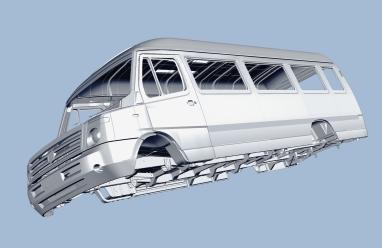

Monocoque construction |
| SUSPENSION |
| Front & Rear |
Spring Semi elliptical |
| Anti roll bar |
Yes |
| Shock absorbers |
Hydraulic telescopic double acting at front and rear |
| STEERING |
| Type |
Power Steering |
| BRAKES |
| Type |

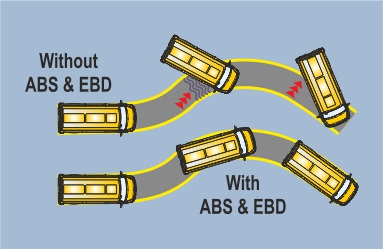

Dual circuit, hydraulic, vacuum assisted, auto slack adjuster, ABS with EBD |
| Auto Slack Adjuster |
Yes |
| Front |
Disc. |
| Rear |
Drum |
| Parking |
Mechanical acting on rear wheel |
| WHEELS & TYRES |
| Size |
215/75 R 15 |
| Tyre Type |
Radial with Tube/Tubeless / (4+1) |
| DIMENSIONS (mm) |
| Wheel Base |
3050 |
| Overall Length |
5135 |
| Overall Width |
1900 |
| Overall Height |
2550/ 2265 |
| Ground Clearance |
200 |
| WEIGHT (kg) |
| Maximum GVW |
3675 |
| CAPACITY |
| Fuel Tank |
70 Litres |
| SEATING CAPACITY |

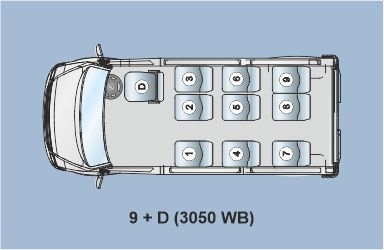

| Seating Capacity |
13+D/12+D/9+D |

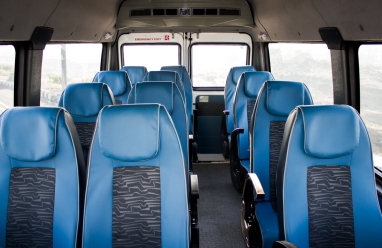

| Seating Type |
High back / Standard / Reclining |
