Trax DCPU 5+D | 472 kg
SALIENT FEATURES
-
All New C-in-C Chassis Rectangular Type, for Excellent Bending Strength and Torsional Rigidity

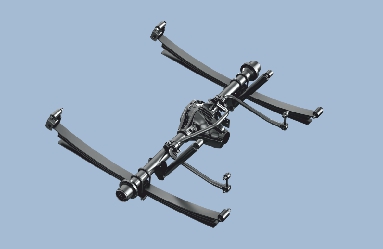

All New Suspension for Excellent Ride Comfort

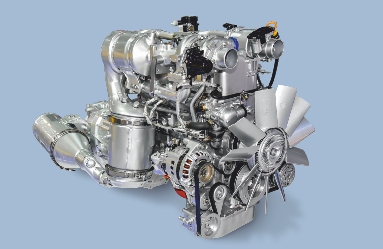

Mercedes Derived, FM 2.6 CR CD BSVI Engine Powerful & Fuel Efficient

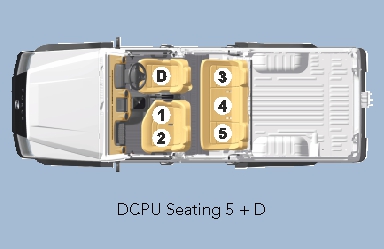

DCPU Van D+5

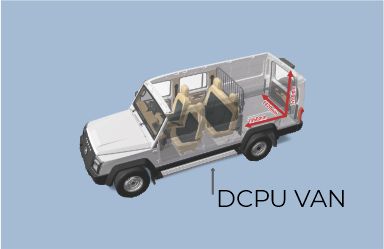

DCPU Van

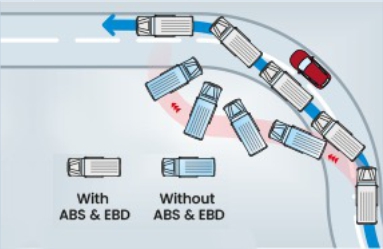

ABS with EBD for best in class safety
| ENGINE | |
| Engine | FM2.6CR ED |
| Emission | BS-VI Stage 2 |
| Type | 4 Cyl. Common Rail, DI TCIC |
| Displacement | 2596 cc |
| Max Output | 67 kW (90hp) @ 3200 rpm |
| Max Torque | 250 Nm @ 1400-2400 rpm |
| TRANSMISSION | |
| Type | Manual, Synchromesh |
| Model | G28/5B |
| No. of Gears | 5Front +1Reverse |
| AXLES | |
| Front | Independent |
| Rear | Live Rigid |
| BODY | |
| Type | Rectangular, C in C type chassis section |
| SUSPENSION | |
| Front | Independent Type, Double Wishbone,Torsion Bar With Anti Roll Bar |
| Rear | Leaf Spring type with shock absorber & anti roll bar |
| STEERING | |
| Type | Power steering - Rack & Pinion |
| Turning Radius | 6.1 m |
| BRAKES | |
| Service Brakes | Dual circuit, hydraulic vacuum assisted with autowear adjuster, ABS with EBD |
| Front | Disc |
| Rear | Drum |
| Parking | Mechanical acting on rear wheels |
| WARRANTY | |
| Warranty | 3 years / 3 lakh km* with 6 free services * T&C apply |
| WHEELS & TYRES | |
| Size | 215/75 R15 LT |
| Tyre Type | Radial / Tubeless |
| DIMENSIONS (mm) | |
| Wheel Base | 3050 |
| Overall Length | 5120 |
| Overall Width | 1818 |
| Overall Height | 2027 |
| Overhang Front | 820 |
| Overhang Rear | 1250 |
| CARGO BOX | |
| Cargo Box (L x W x H) | 1460 x 1470 x 1230 |
| Cargo Vol.(m3) | 2.1 m3 |
| Ground Clearance (mm) | 191 |
| WEIGHT (kg) | |
| Max. Permissible FAW | 1205 |
| Max. Permissible RAW | 1895 |
| Max. Permissible GVW | 3100 |
| Rated Payload | 920 |
| CAPACITY | |
| Fuel Tank | 63.5 Litres/AdBlue 20 |
| SEATING CAPACITY | |
| Seating Capacity | 5 + D |
