| ENGINE |
| Model |
FM2.6CR ED |
| Emission |
BS-VI Stage 2 |
| Type |
4 Cyl. Common Rail, DI TCIC |
| Displacement |
2596 cc |
| Max Output |
67 kW (90hp) @ 3200 rpm |
| Max Torque |
250 Nm @ 1400-2400 rpm |
| GEAR BOX |
| Type |
G-28/5B, Synchromesh Gear Box with Cable Shift |
| No. of gears |
5 Forward, 1 Reverse |
| AXLES |
| Front |
Independent |
| Rear |
Live Rigid |
| STEERING |
| Type |
Power assisted Hydraulic Rack & Pinion |
| BODY |
| Type |
Rectangular, C in C type chassis section |
| SUSPENSION |
| Front |
Independent type, double wishbone |
| Rear |
Leaf spring |
| SPRING |
| Front |
Torsion bar |
| Rear |
Parabolic leaf spring |
| Anti roll bar |
Yes |
| Shock absorbers |
Hydraulic telescopic double acting both at front & rear |
| BRAKES |
| Service Brakes |
Dual circuit, hydraulic vacuum assisted with auto wear adjuster |
| ABS & EBD |
Yes |
| Front |
Disc. |
| Rear |
Drum |
| Parking brake |
Mechanical acting on rear wheels |
| WHEELS & TYRES |
| Size |
215/75 R15 LT |
| Tyre Type |
Radial Tubeless |
| DIMENSIONS (mm) |
| Wheel Base |
3050 |
| Overall Length |
5120 |
| Overall Width |
1818 |
| Overall Height |
2027 |
| Ground Clearance |
191 |
| WEIGHT (kg) |
| Maximum GVW |
3180 |
| CAPACITY |
| Fuel Tank |
63.5 Litres |
| AbBlue |
20 |

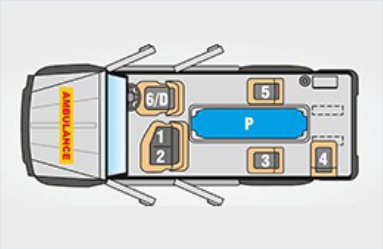

| SEATING CAPACITY |
| Seating Capacity |
6 + P |
