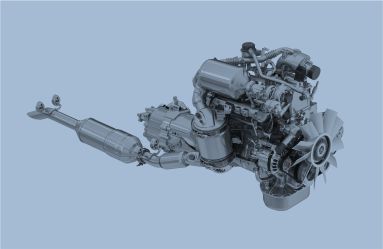

| ENGINE |
| Engine |
FM2.6CR ED |
| Emission |
BS-VI Stage 2 |
| Type |
4 Cyl. Common Rail, DI TCIC |
| Displacement |
2596 cc |
| Max Output |
67 kW (90hp) @ 3200 rpm |
| Max Torque |
250 Nm @ 1400-2400 rpm |
| TRANSMISSION |
| Type |
Manual, Synchromesh |
| Model |
G28/5B |
| No. of Gears |
5Front +1Reverse |

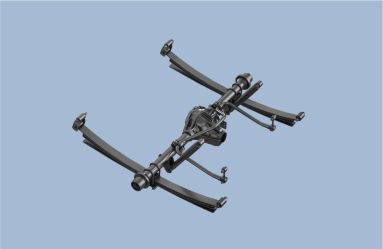

| AXLES |
| Front |
Independent |
| Rear |
Live Rigid |

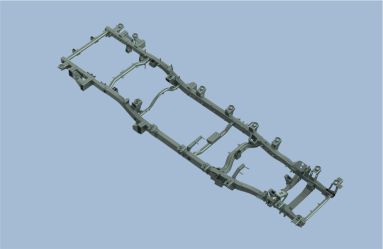

| BODY |
| Type |
Rectangular, C in C type chassis section |
| SUSPENSION |
| Front |
Independent Type, Double Wishbone,Torsion Bar With Anti Roll Bar |
| Rear |
Leaf Spring type with shock absorber & anti roll bar |
| STEERING |
| Type |
Power steering - Rack & Pinion |
| Turning Radius |
6.1 m |
| BRAKES |
| Service Brakes |

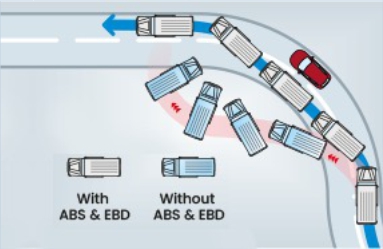

Dual circuit, hydraulic vacuum assisted with autowear adjuster, ABS with EBD |
| Front |
Disc. |
| Rear |
Drum |
| Parking |
Mechanical acting on rear wheels |
| WARRANTY |
| Warranty |
3 years / 3 lakh km* with 6 free services * T&C apply |
| WHEELS & TYRES |
| Size |
215/75 R15 LT |
| Tyre Type |
Radial / Tubeless |
| DIMENSIONS (mm) |
| Wheel Base |
3050 |
| Overall Length |
5120 |
| Overall Width |
1818 |
| Overall Height |
2027 |
| Overhang Front |
820 |
| Overhang Rear |
1250 |

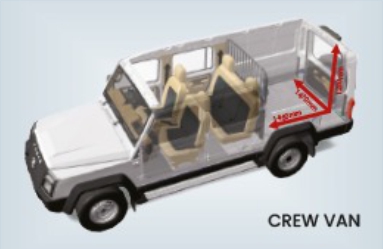

| CARGO BOX |
| Cargo Box (L x W x H) |
1460 x 1470 x 1230 |
| Cargo Vol.(m3) |
2.1 m3 |
| Ground Clearance (mm) |
191 |
| WEIGHT (kg) |
| Maximum FAW |
1205 |
| Maximum RAW |
1895 |
| Maximum GVW |
3100 |
| Rated Payload |
920 |
| CAPACITY |
| Fuel Tank |
63.5 Litres/AdBlue 20 |

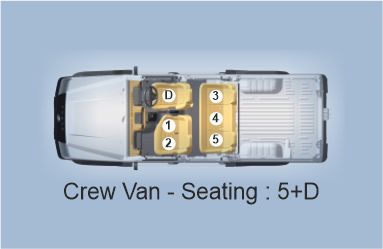

| SEATING CAPACITY |
| Seating Capacity |
5 + D |
