Trax Police Van
SALIENT FEATURES
-
Spacious Seating & Ample Space For Police Personnel And Rescue Victim With Air Conditioning
Space For 6 Feet Foldable Stretcher For Victim Rescue
Spacious Storage Area for Rescue Equipment, Protective Gears And Lathis for Bandobast Duty

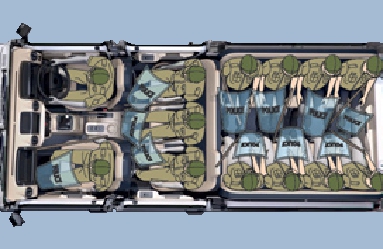

Comfortable Troop Movement For Anti Riot Deployment For Police Personnel
Printer, Laptop And Charging Ports With Comfortable Seating For Lodging Fir
Comfortable Resting/Stretching Place for Police Personnel During Long Duty Hours

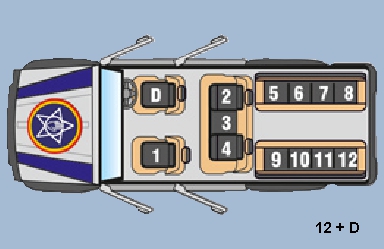

12 + D
| ENGINE | |
| Engine | FM2.6CR CD |
| Emission | BS-VI Stage 2 |
| Type | 4 Cyl. Common Rail, DI TCIC |
| Displacement | 2596 cc |
| Max Output | 67 kW (90hp) @ 3200 rpm |
| Max Torque | 250 Nm @ 1400-2400 rpm |
| GEAR BOX | |
| Type | Manual, Gear lock synchromesh on forward gears |
| No. of gears | 5 Forward and 1 Reverse |
| Transfer Case | NA |
| Manual Diff. Lock on front and rear | Yes |
| STEERING | |
| Type / Description | Power Steering |
| BODY | |
| Type | Monocoque Construction |
| SUSPENSION | |
| Front & Rear | Spring Semi elliptical |
| Anti roll bar | Front-Yes, Rear-Optional |
| Shock absorbers | Hydraulic telescopic double acting at front & rear |
| BRAKES | |
| Type | Dual circuit, Hydraulic, vacuum assisted, ABS with EBD |
| Auto Slack Adjuster | Yes |
| Front | Disc |
| Rear | Drum / Disc(4020WB Only) |
| DIMENSIONS (mm) | |
| Wheel Base | 3050 |
| Overall Width | 1818 |
| Overall Length | 5120 |
| Overall Height | 2027 |
| Ground Clearance | 191 |
| WEIGHT (kg) | |
| Maximum GVW | 3180 |
| CAPACITY | |
| Fuel Tank | 63.5 Litres |
| WHEELS AND TYRES | |
| Tyre Type / (Nos.) | 4+1 |
| Tyre Size | 215/75 R15 |
