Toofan 11+D
SALIENT FEATURES
-

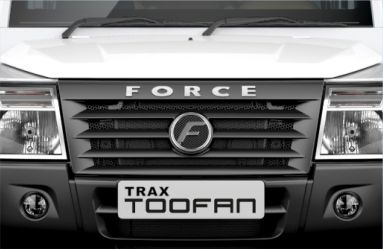

Modern & Attractive Front Fascia with New Bumper and Integrated Fog Lamps (Optional)
Clear Lens Composite Headlamp
Stuck Glass Windscreen

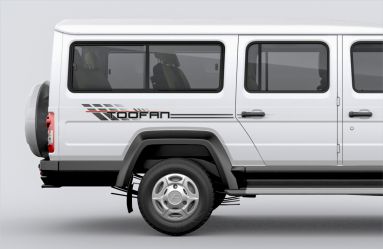

Extra Wide Side Windows with Attractive Side Farings

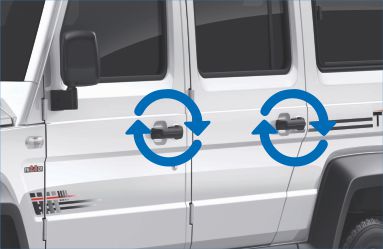

Pull Type Door Handles and Latches

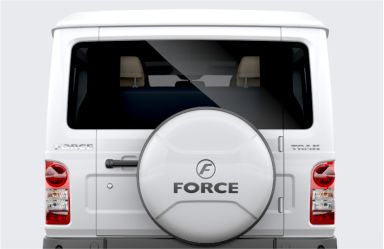

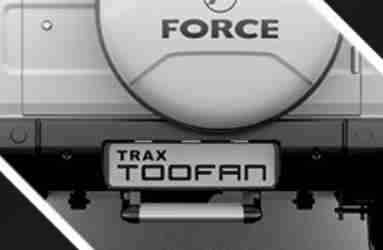

Stuck glass windscreen and door mounted Stepney, Stepney cover (optional)
Stylish Blinkers
Pull Type Door Handles and Latches
Extra Wide Side Windows with Attractive Side Farings

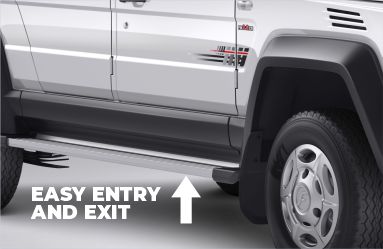

Easy Entry and Exit
Stuck glass windscreen and door mounted Stepney, Stepney cover (optional)

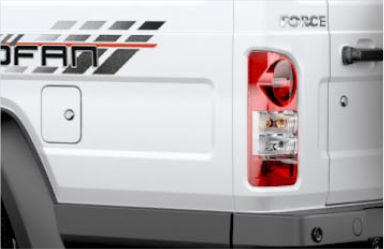

Stylish Blinkers
Attractive Rear Bumper with Parking Sensors

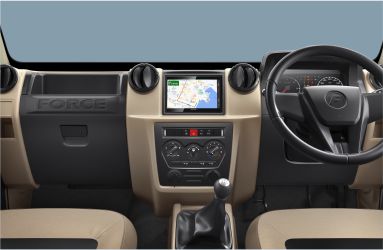

Dual Tone Dashboard

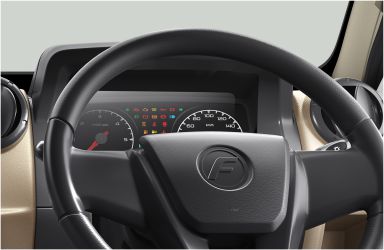

New Instrument Cluster

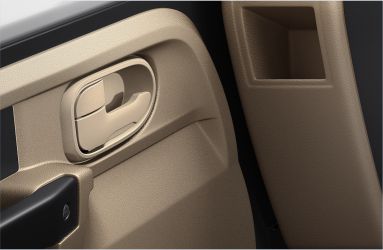

Stylish Door Trims

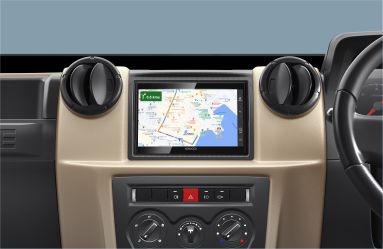

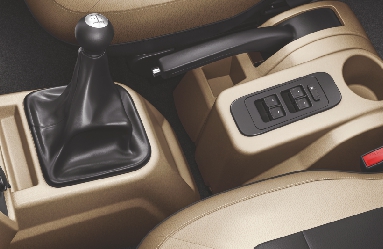

Attractive Center Console
Powerful Dual Air Conditioning (Optional)

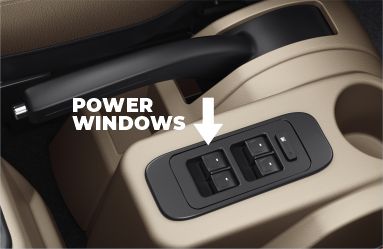

Power Windows

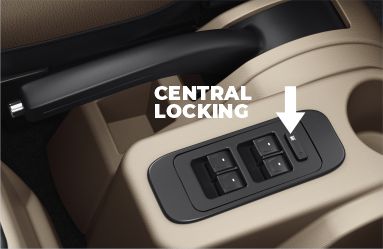

Central Locking

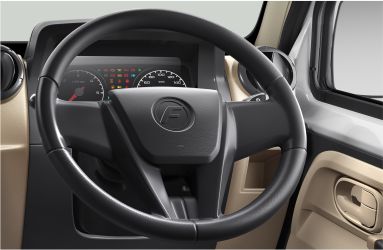

Power Steering

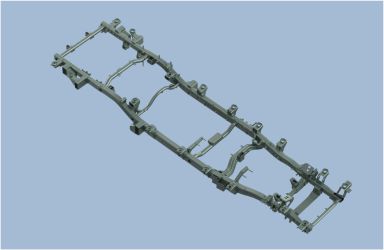

All New C-in-C Chassis for Excellent Bending Strength and Torsional Rigidity

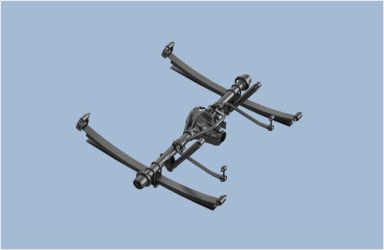

All New Suspension for Excellent Ride Comfort

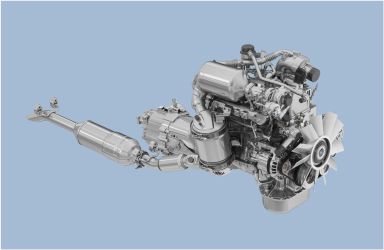

Mercedes Derived FM 2.6 CR BS6 Engine and All New Transmission
Seating Options : 9+D and 12+D
ABS with EBD
ENGINE | |
Model | FM 2.6 CR CD |
Emission | BS-VI Stage 2 |
Type | 4 Cyl, Common Rail DI TCIC |
Displacement | 2596 cc |
Max Output | 67 kW (90 hp) @ 3200 rpm |
Max Torque | 250 Nm @ 1400-2400 rpm |
GEAR BOX | |
Type | Manual, Gear Lock Synchromesh on forward gears |
No. of Gears | 5 Forward, 1 reverse |
AXLES | |
Front | Independent |
Rear | Live Rigid |
STEERING | |
Type / Description | Power assisted Hydraulic Rack & Pinion |
BODY | |
Rectangular Long member | C-in-C type chassis section |
SUSPENSION | |
Front | Independent type, double wishbone |
Rear | Leaf spring |
SPRINGS | |
Front | Torsion bar |
Rear | Parabolic leaf spring |
ANTI ROLL BAR | |
Shock absorber | Hydraulic telescopic double acting both at front & rear |
BRAKES | |
Service Brakes | Dual circuit, hydraulic,vacuum assisted with auto wear adjuster |
ABS, EBD | Yes |
Front | Disc |
Rear | Rear |
Parking | Mechanical acting on rear wheels |
WHEELS & TYRES | |
Size | 215/75 R15 LT |
Tyre Type | Radial with tubeless1818 |
DIMENSIONS (mm) | |
Wheel Base | 3050 |
Overall Length | 5120 |
Overall Width | 1818 |
Overall Height | 2027 |
Ground Clearance | 191 |
WEIGHT (kg) | |
Maximum GVW | 3180 |
CAPACITY | |
Fuel Tank | 63.5 Litres |
AdBlue | 20 |
SEATING CAPACITY | |
Seating Capacity | 11+D |
