Traveller 3350WB 9+D/12+D/13+D/14+D

SALIENT FEATURES

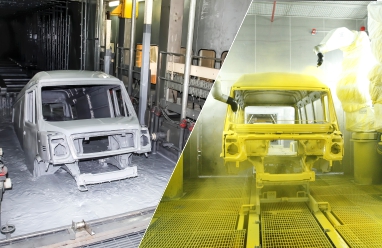

  • C.E.D. Primer Application and Robotic Top Coat painting for Paint Gloss Retention
  • Twin Blower AC for uniform and better climate control (optional)

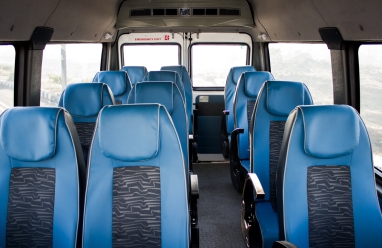

  • Luxurious high back Recliner seats with Armrest (optional)

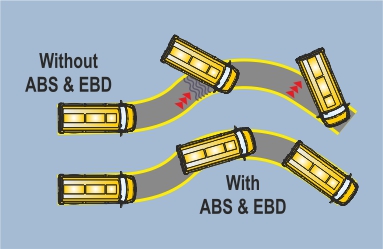

  • ABS and EBD

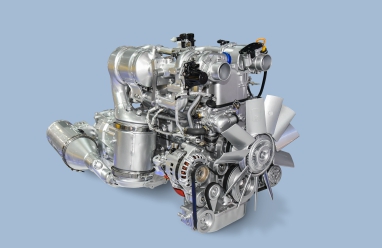

  • Mercedes derived, Highly Powerful and fuel efficient FM 2.6 CR Power train

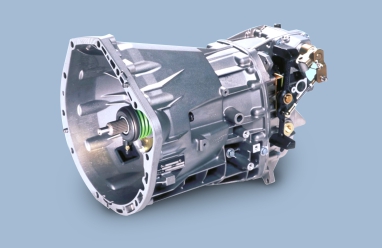

  • Synchromesh G-32 Gear Box for Effortless Gear Shifting

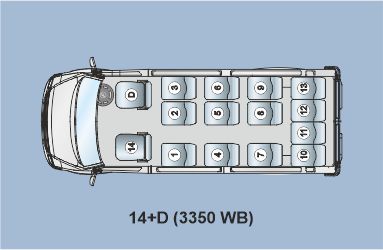

  • Available in 9+ D, 12+ D , 13+D and 14+D Seating

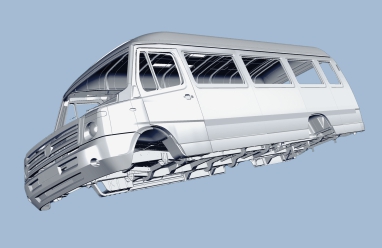

  • Monocoque body ensures total safety and car like ride quality

ENGINE
Engine FM 2.6 CR ED
Emission S-VI Stage 2
Type 4 Cylinder, Common Rail , DI TCIC
Bore x Stroke (mm) 90.9 x 100
Displacement 2596 cc
Max Output 85kW (114hp) @ 2950 rpm
Max Torque 350Nm @ 1400-2200 rpm
TRANSMISSION
Type Manual, Gear Lock Synchromesh on forward gears
Model G32-5
No. of Gears 5 Forward + 1 Reverse
BODY
Type Monocoque construction
SUSPENSION
Front & Rear Spring Semi elliptical
Anti roll bar Yes
Shock absorbers Hydraulic telescopic double acting at front and rear
STEERING
Type Power Steering
BRAKES
Type Dual circuit, hydraulic, vacuum assisted, auto slack adjuster, ABS with EBD
Auto Slack Adjuster Yes
Front Disc.
Rear Drum
Parking Mechanical acting on rear wheel
WHEELS & TYRES
Size 215/75 R 15
Tyre Type Radial with Tube/Tubeless / (4+1)
DIMENSIONS (mm)
Wheel Base 3350
Overall Length 5615
Overall Width 1900
Overall Height 2550
Ground Clearance 200
WEIGHT (kg)
Maximum GVW 3965
CAPACITY
Fuel Tank 70 Litres
SEATING CAPACITY
Seating Capacity 9+D, 12+D, 13+D, 14+D
Seating Type Standard / Recliner / High back
