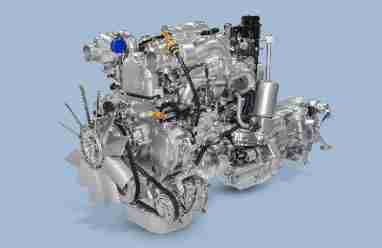

| ENGINE |
| Model |
FM2.6CR ED |
| Emission |
BS-VI Stage 2 |
| Type |
4 Cyl. Common Rail, DI TCIC |
| Displacement |
2596 cc |
| Max Output |
85kW (114 hp)@ 2950 rpm |
| Max Torque |
350 Nm @ 1400 - 2200 rpm |

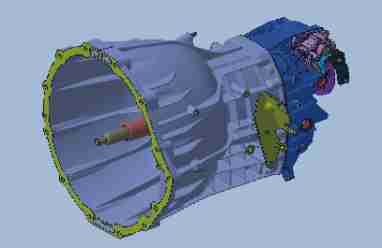

| TRANSMISSION |
| Type |
G35/5 Manual,full synchromesh, cable shift |
| No. of Gears |
5 Forward + 1 Reverse |
| AXLES |
| Front |
Dead Rigid, I-Beam & Reverse Elliot |
| Rear |
Live Rigid |

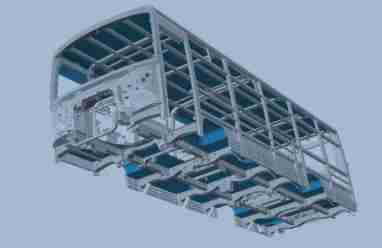

| BODY |
| Type |
Monocoque construction |

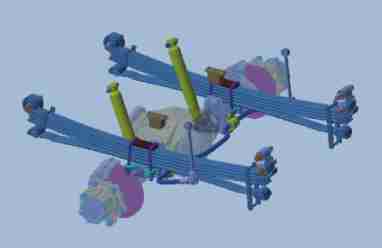

| SUSPENSION |
| Type / Description |
Leaf spring |
| Spring - Front |
Parabolic |
| Spring - Rear |
Parabolic |
| Anti roll bar |
Front-Yes, Rear-Yes |
| Shock absorbers |
Hydraulic telescopic double acting at front & rear |

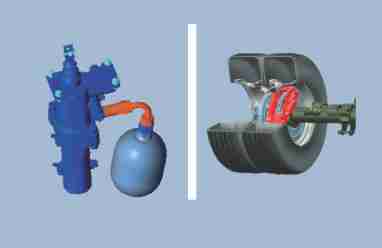

| STEERING |
| Type |
Power Steering |
| BRAKES |
| Service Brakes |
Dual circuit, Hydraulic assisted (Unibooster) with ABS, EBD, HBC and ESP |
| Front & rear |
Disc. |
| Parking brake |
Mechanical acting on Transmission |
| WHEELS & TYRES |
| Tyre type |
Radial tubeless |
| Tyre Size |
225 / 75 R 17.5 |
| DIMENSIONS (mm) |
| Wheel Base |
4020 |
| Overall Width |
2400 |
| Overall Length |
8430 |
| Overall height with roof hatch / AC |
3062/3210 |
| Ground Clearance |
185 |
| WEIGHT (kg) |
| Maximum GVW |
7845 |
| Seat option |
High back / Standard |
| CAPACITY |
| Fuel Tank |
120 Litres |
| AdBlue |
20 |

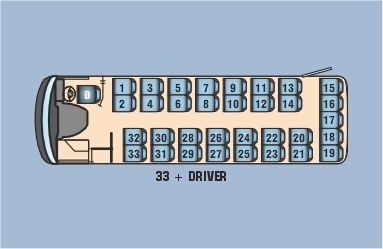

| SEATING CAPACITY |
| Seating Capacity |
33+D |
| TURNING RADIUS |
| Radius |
6.8 m |
