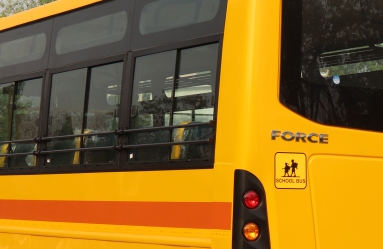

Monobus SWB 48+A+D
SALIENT FEATURES

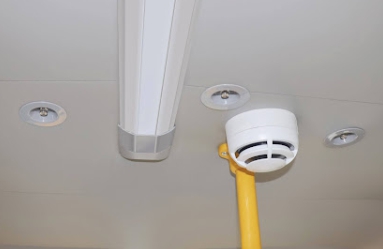

- Now, with Best-in-Class FIRE ALARM PROTECTION SYSTEM for more safety in case of fire
- Low foot step and Hand Rail for easy entry & exit
- Grab Handles, Stanchion Bar & Chin Guard for safety

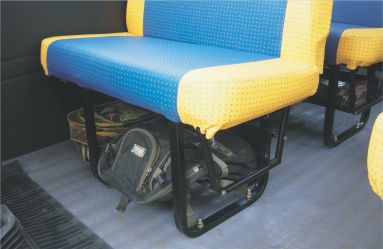

- Convenient under seat storage

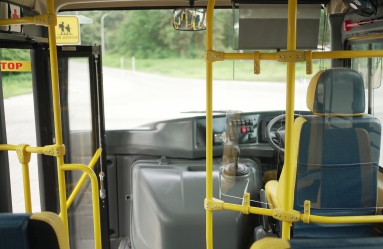

- Driver partition provided

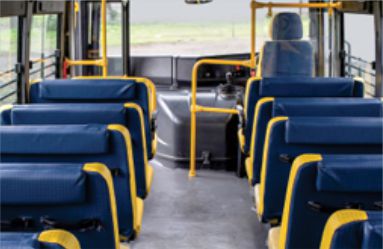

- Thoughtfully placed Bar railing for additional safety

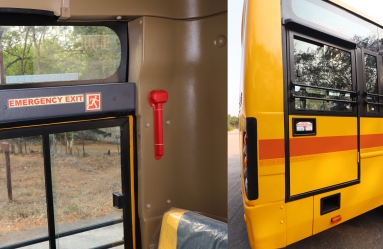

- Easy access, Emergency Door Options

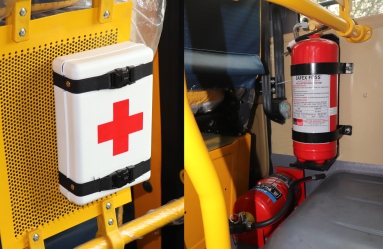

- First-Aid, Fire extinguisher & FDSS in case of emergency

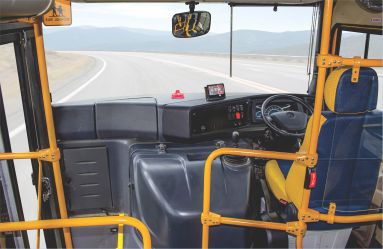

- Smart Dashboard & large internal rear view mirror

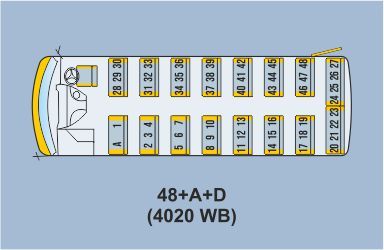

- Seating capacity 48 + A + D

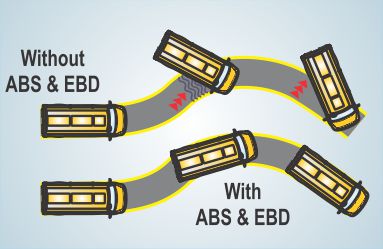

- ABS with EBD
- The 'CBT' feature ensures total safety of the child & gives details of the bus location
| ENGINE | |
| Model | FM2.6CR ED |
| Emission | BS-VI stage 2 |
| Bore x Stroke (mm) | 90.9x100 |
| Type | 4 Cyl. Common Rail, DI TCIC |
| Displacement | 2596 cc |
| Max Output | 85Kw(114 hp) @ 2950 rpm |
| Max Torque | 350 Nm @ 1400 - 2200 rpm |
| GEAR BOX | |
| Make & Model | G35-5 |
| Type | Manual, Synchromesh |
| No. of Gears | 5 Forward + 1 Reverse |
| BODY | |
| Type | Monocoque Construction |
| SUSPENSION | |
| Front & Rear | Parabolic Leaf Spring |
| Anti roll bar | Front-Yes, Rear-Yes |
| Shock absorbers | Front - Yes,Rear - Yes |
| BRAKES | |
| Service Brakes | Dual circuit, hydraulic, hydraulic assisted (Unibooster) with ABS, EBD, ESP & HBC |
| Auto Slack Adjuster | Yes |
| Front | Disc |
| Rear | Disc |
| Parking Brake | Mechanical acting on Transmission |
| CAPACITY | |
| Fuel & Ad Blue Capacity | 120 Ltrs / 23.5 ltrs |
| DIMENSIONS (mm) | |
| Wheel Base | 4020 |
| Overall Length | 8430 |
| Overall Width | 2400 |
| Overall Height | 2910 |
| Ground Clearance | 185 |
| WEIGHT (kg) | |
| Maximum GVW | 8160 |
| SEATING CAPACITY | |
| Seating Capacity | 29/32+A+D (2X2) 41+A+D (3X2) 43+A+D (3X2) 48+A+D (3X3) |
