Monobus LWB 53+A+D

SALIENT FEATURES

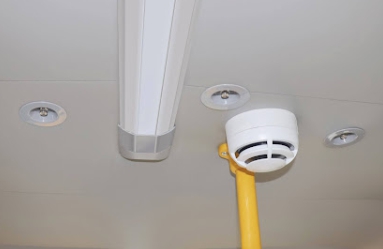

  • Now, with Best-in-Class FIRE ALARM PROTECTION SYSTEM for more safety in case of fire

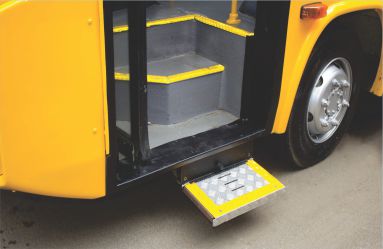

  • Low foot step and Hand Rail for easy entry & exit

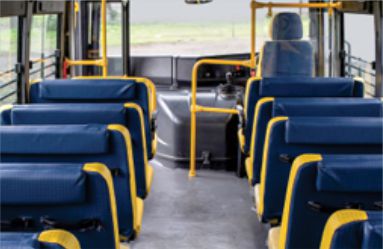

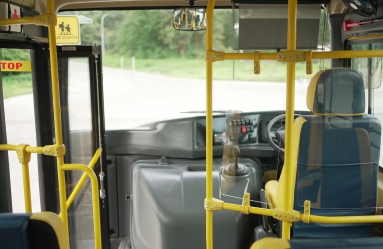

  • Grab Handles, Stanchion Bar & Chin Guard for safety

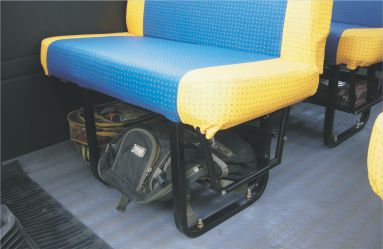

  • Convenient under seat storage
  • Driver partition provided
  • Thoughtfully placed Bar railing for additional safety

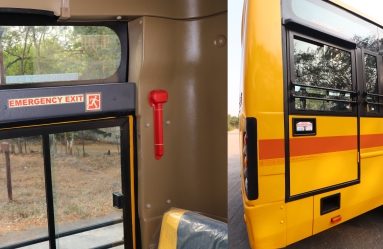

  • Easy access, Emergency Door Options

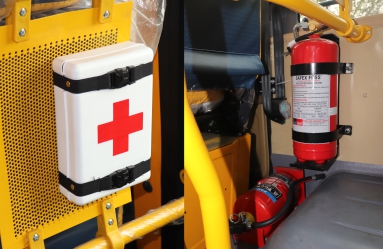

  • First-Aid, Fire extinguisher & FDSS in case of emergency

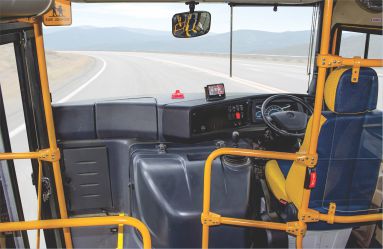

  • Smart Dashboard & large internal rear view mirror

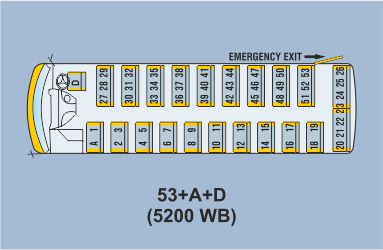

  • Seating capacity 53 + A + D

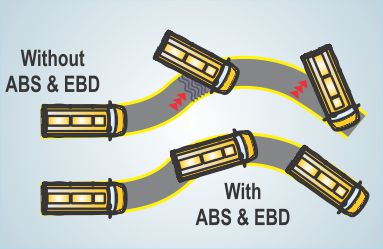

  • ABS with EBD
  • The 'CBT' feature ensures total safety of the child & gives details of the bus location

ENGINE
Model FM2.6CR ED
Emission BS-VI stage 2
Bore x Stroke (mm) 90.9x100
Type 4 Cyl. Common Rail, DI TCIC
Displacement 2596 cc
Max Output 85Kw(114 hp) @ 2950 rpm
Max Torque 350 Nm @ 1400 - 2200 rpm
GEAR BOX
Make & Model G35-5
Type Manual, Synchromesh
No. of Gears 5 Forward + 1 Reverse
BODY
Type Monocoque Construction
SUSPENSION
Front & Rear Parabolic Leaf Spring
Anti roll bar Front-Yes, Rear-Yes
Shock absorbers Hydraulic telescopic double acting at front and rear
BRAKES
Service Brakes Dual circuit, hydraulic, hydraulic assisted (Unibooster) with ABS, EBD, ESP & HBC
Auto Slack Adjuster Yes
Front Disc
Rear Disc
Parking Brake Mechanical acting on Transmission
CAPACITY
Fuel & Ad Blue Capacity 120 Litres
DIMENSIONS (mm)
Wheel Base 5200
Overall Length 9910
Overall Width 2400
Overall Height 2910
Ground Clearance 185
WEIGHT (kg)
Maximum GVW 8980
SEATING CAPACITY
Seating Capacity 53 +A+D
